Pod issue

Your favourite OpenShift admin just went on mat leave, and you are now in charge of your team OpenShift cluster. You have some user that complain they can't play Pacman any more during their lunch break, as the pod is not starting.

Let's get started!

What's going on?

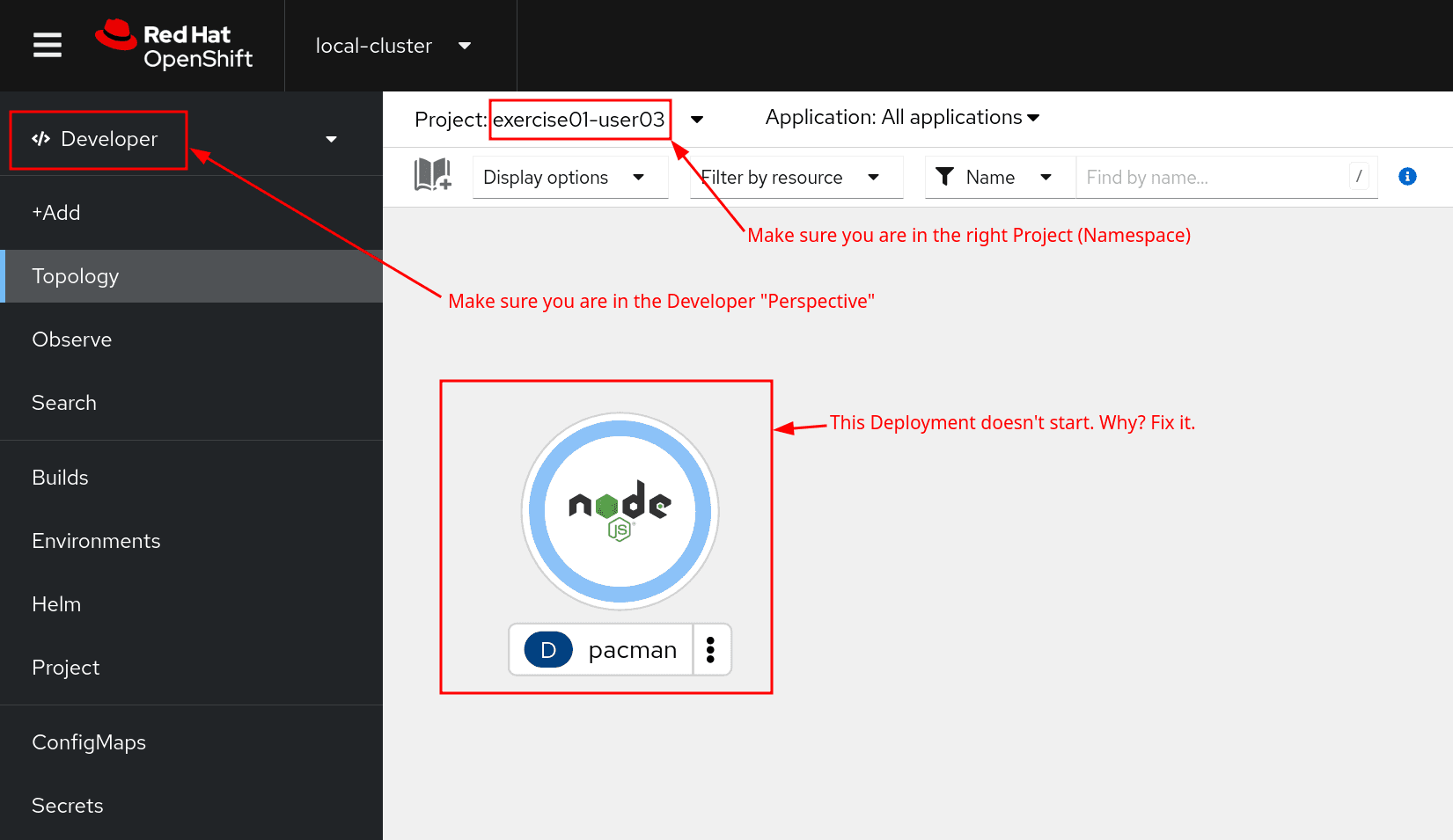

Navigate to your project (exercise01-userXX), make sure you are in the developer perspective, and pick the "Topology view" from the left panel. The deployment is in light blue, so something is not right, we want this nice dark blue deployment color

You may try and identify the issue. Poke around, click, explore. If no luck after a few minutes, then check the hints below as needed.

Hints

Hint 1

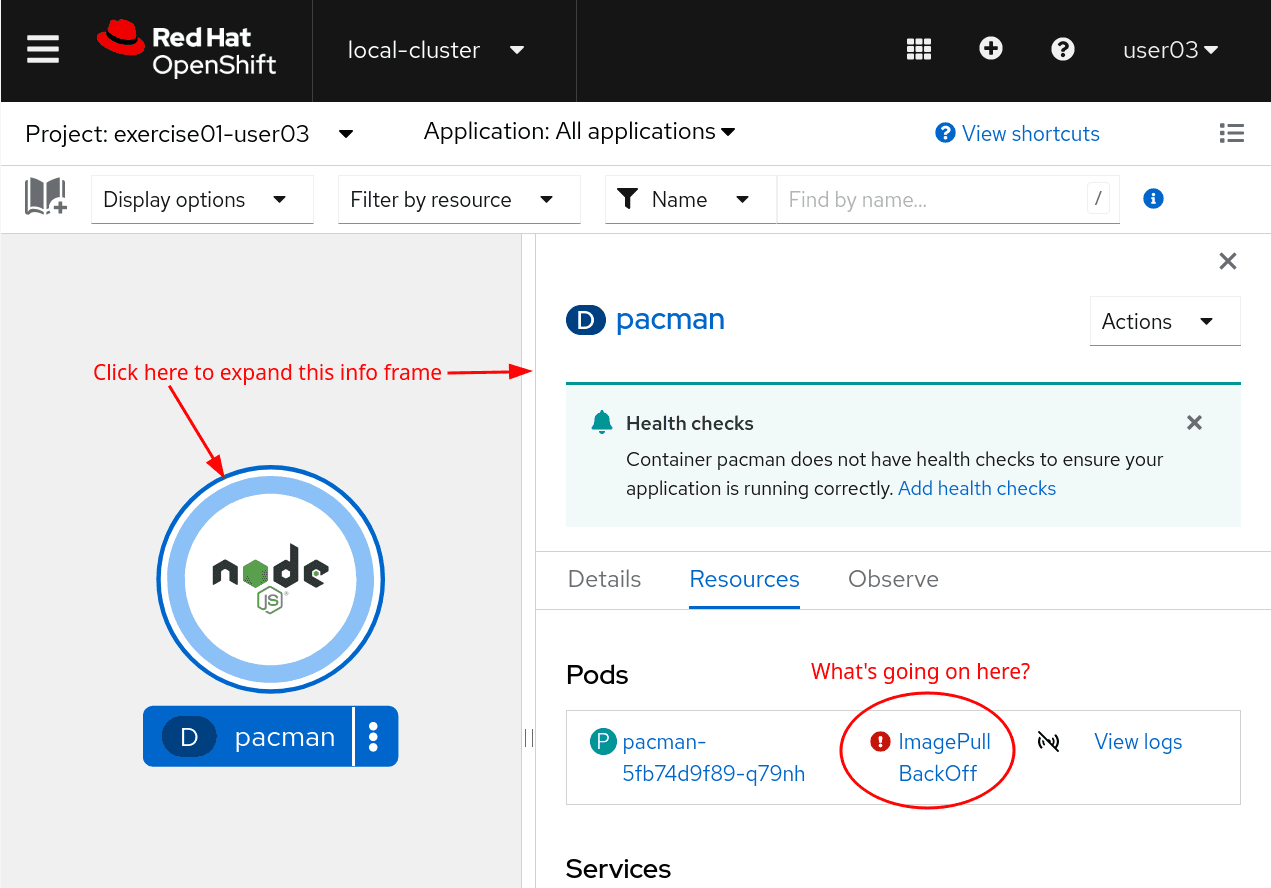

How do I see a deployment overview?

You can get a quick overview of the deployment situation by clicking on the deployment icon. You can probably see some early indications of the problem.

Hint 2

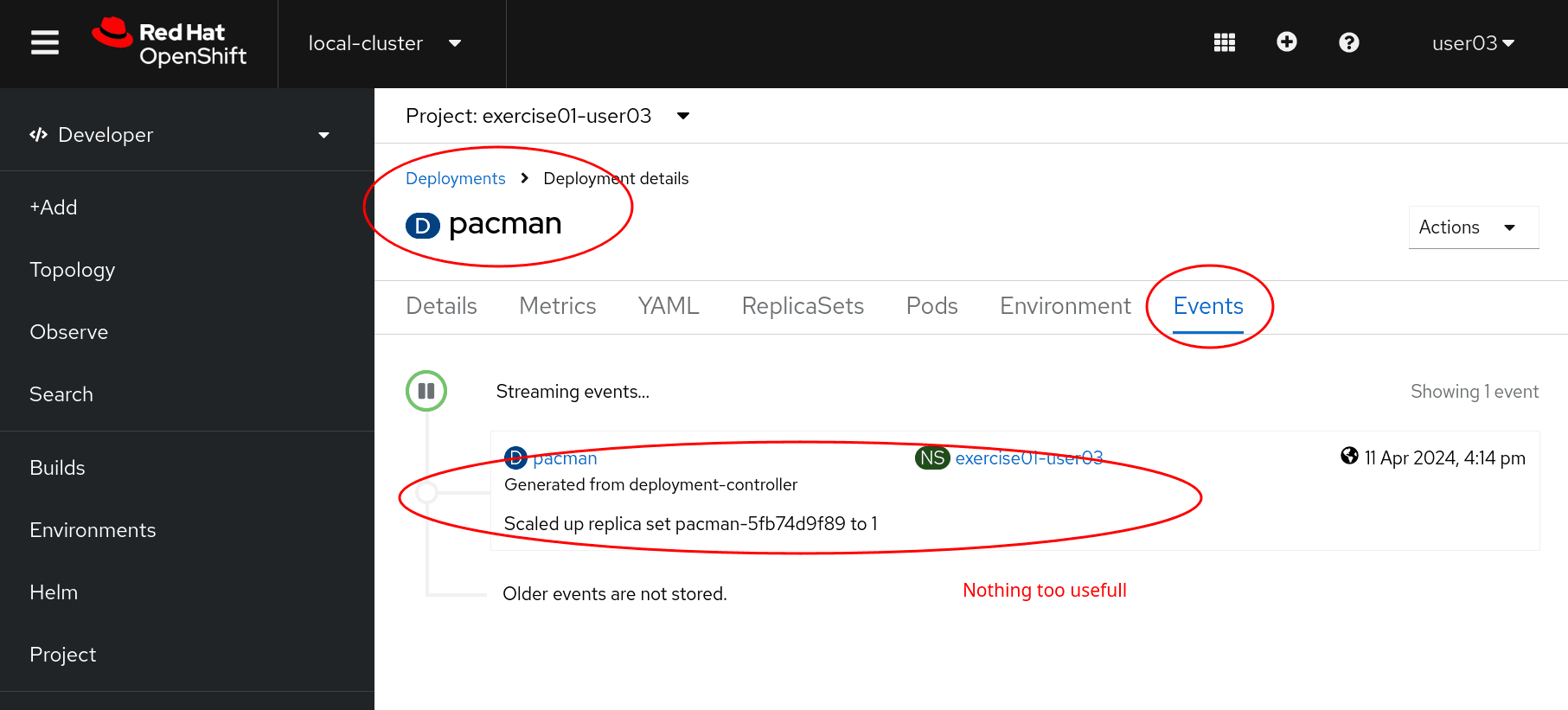

How do I check the deployment events?

You can check the deployment events.

In this case, nothing useful (sorry). It's actually a pod issue

Hint 3

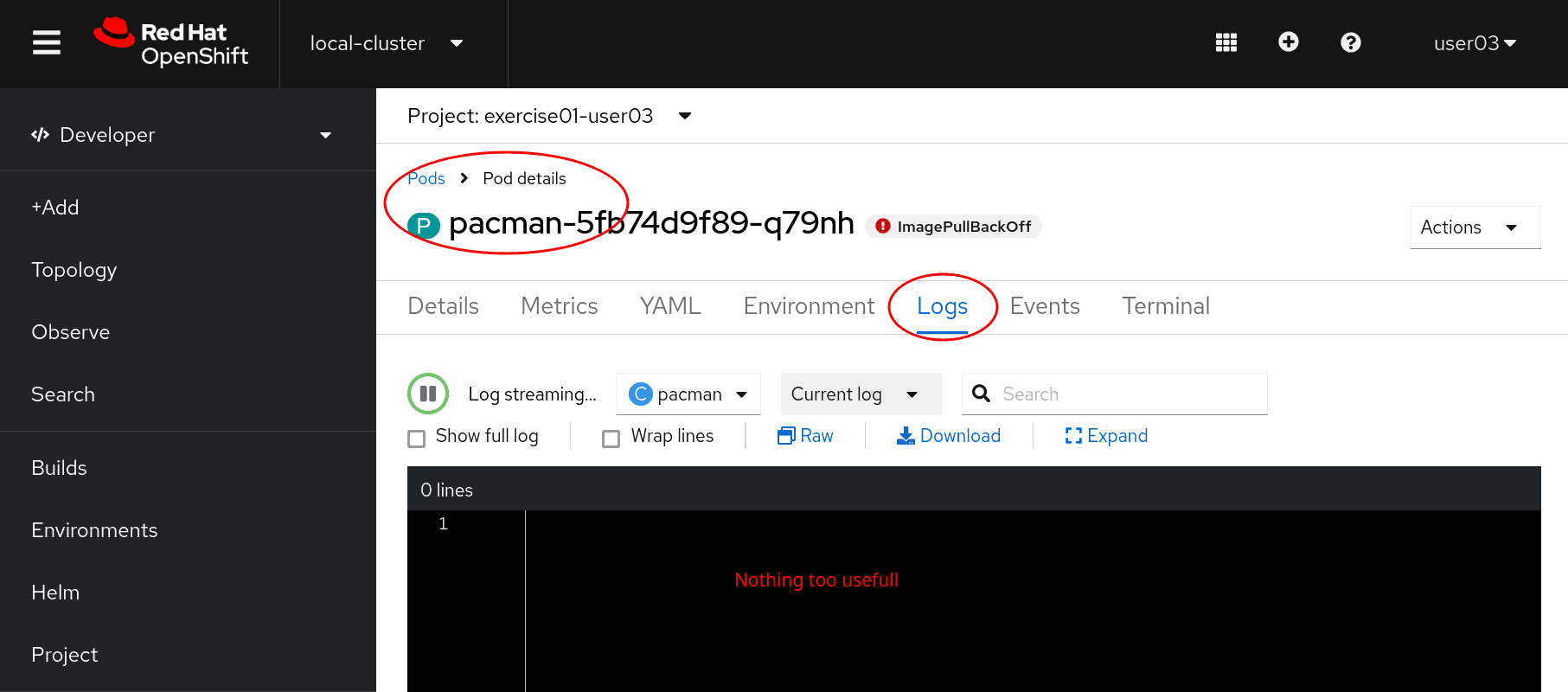

How to check pod logs?

Let's check some pod information, for example, the pod logs.

Well, nothing particularly useful today, and that's because the pod is not even starting, so there is no process running inside the pod, no logs being output.

Hint 4

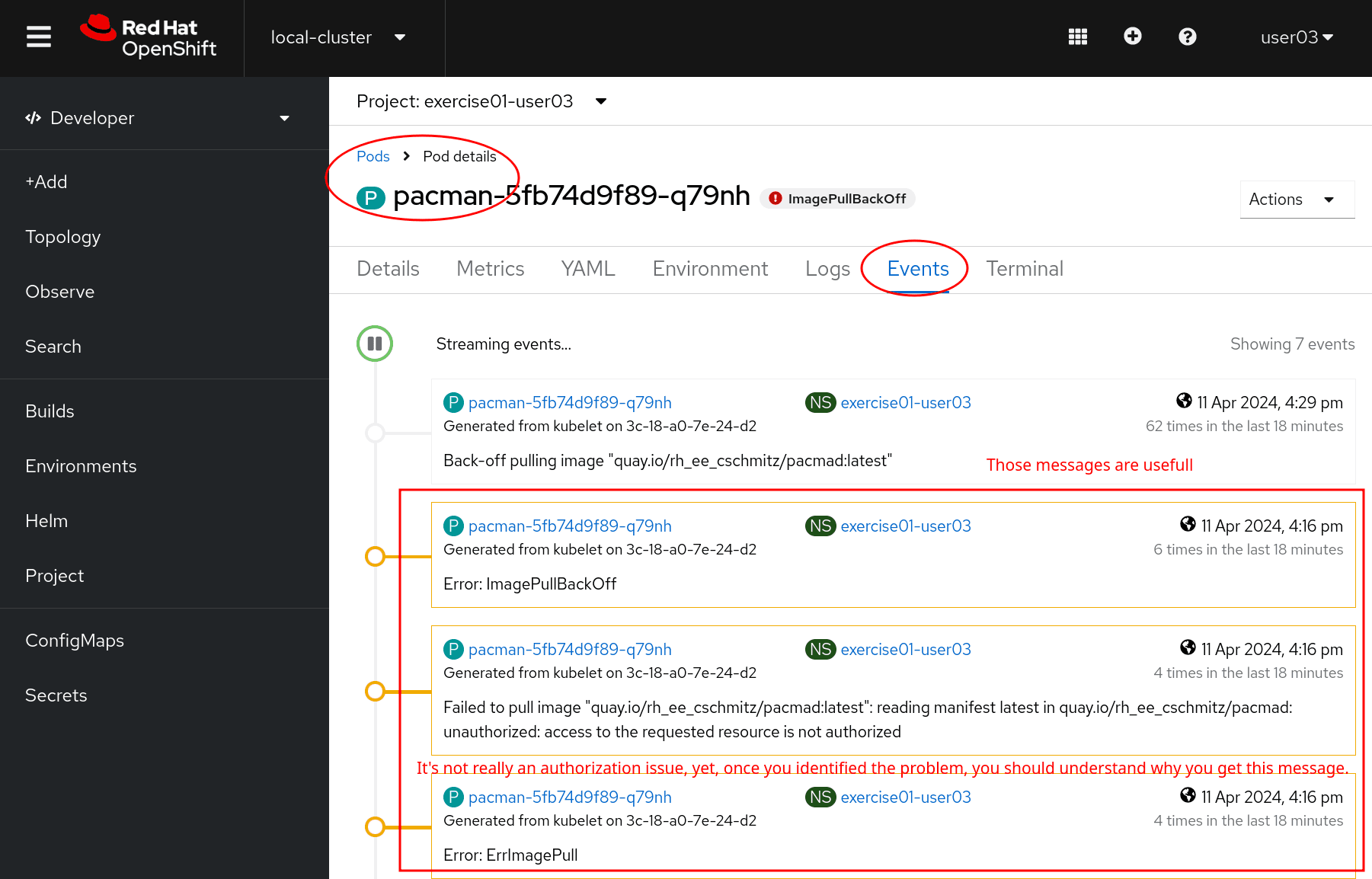

How to check pod events?

Still in the Pods section, let's have a look at the Event.

Ok, something useful now. The container image is not being pulled. The error message indicate it's an authentication issue. I can guarantee you everything is fine authentication wise, yet the message makes sense once you find the root cause. Check very carefully the message, maybe there is a typo somewhere that may explain everything?

Hint 5

Solution

Ok, the issue is that there is a typo in the container image. OpenShift tries to pull an image that does not exist publicly. It assumes the image must be private, and therefore trough an image around authentication. In reality, the image does not exists because of the typo. Let's fix that.

You could fix the pod custom resource definition, however, if the deployment is scaled down to 0, then back to 1, or if the pod is deleted, the deployment will recreate the pod definition with ... the wrong container image name again.

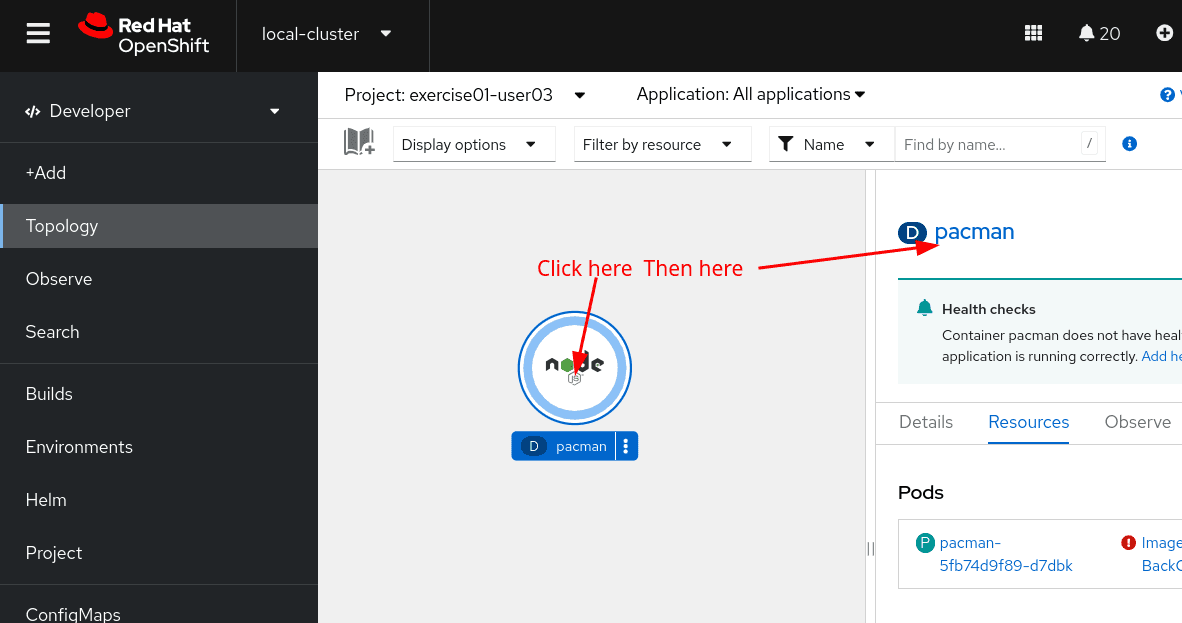

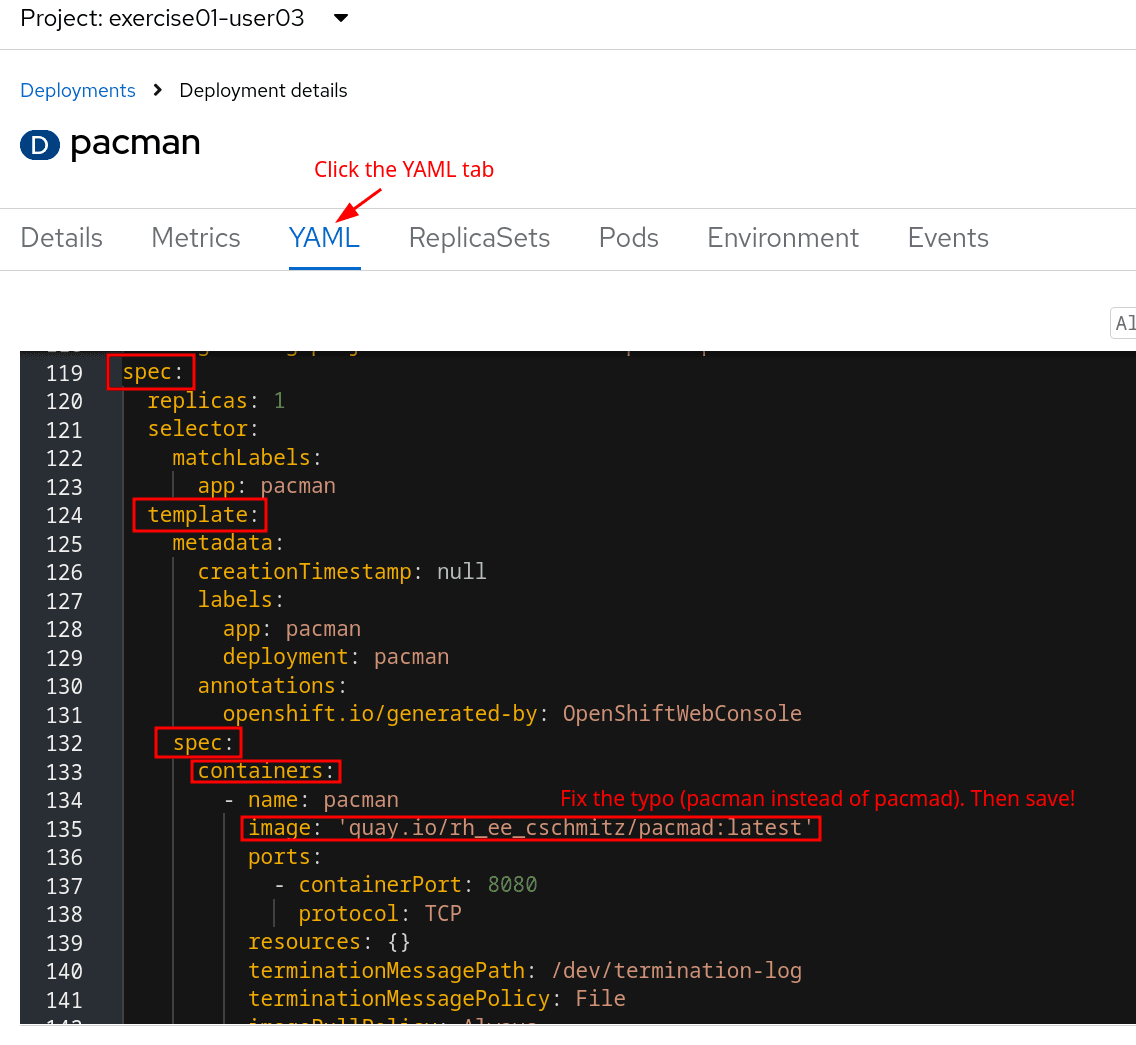

So really, you need to fix the deployment definition. One way to achieve that is with the command line using oc, for example with the command oc set image ... but in this case, we are going to edit the yaml file directly from the OpenShift console. Everything is explained in the next two screenshots

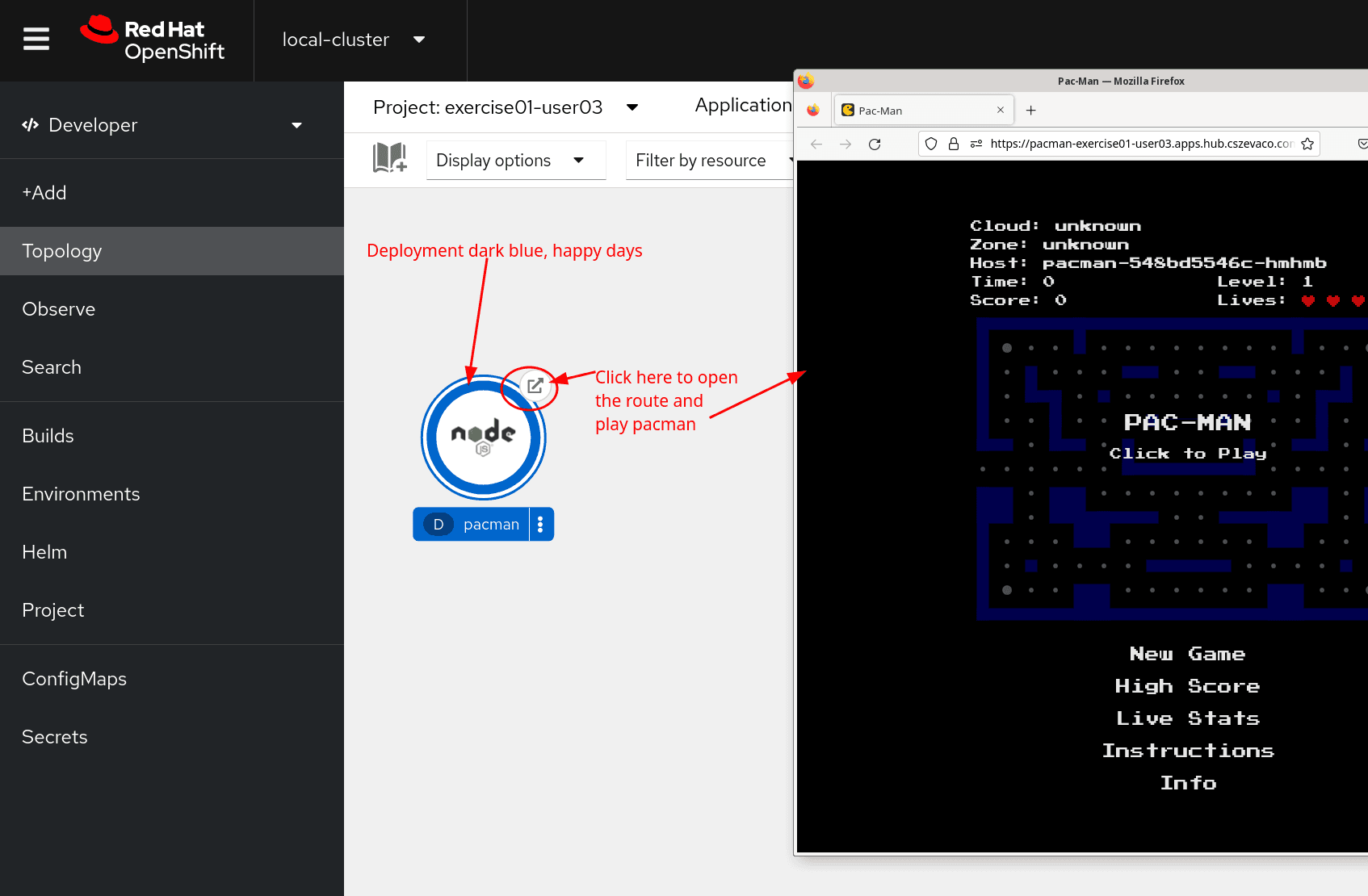

Your pod should now start correctly. Have a play at Pacman, try to hit a high score, read the next section, and move on to the next exercise

Did you know?

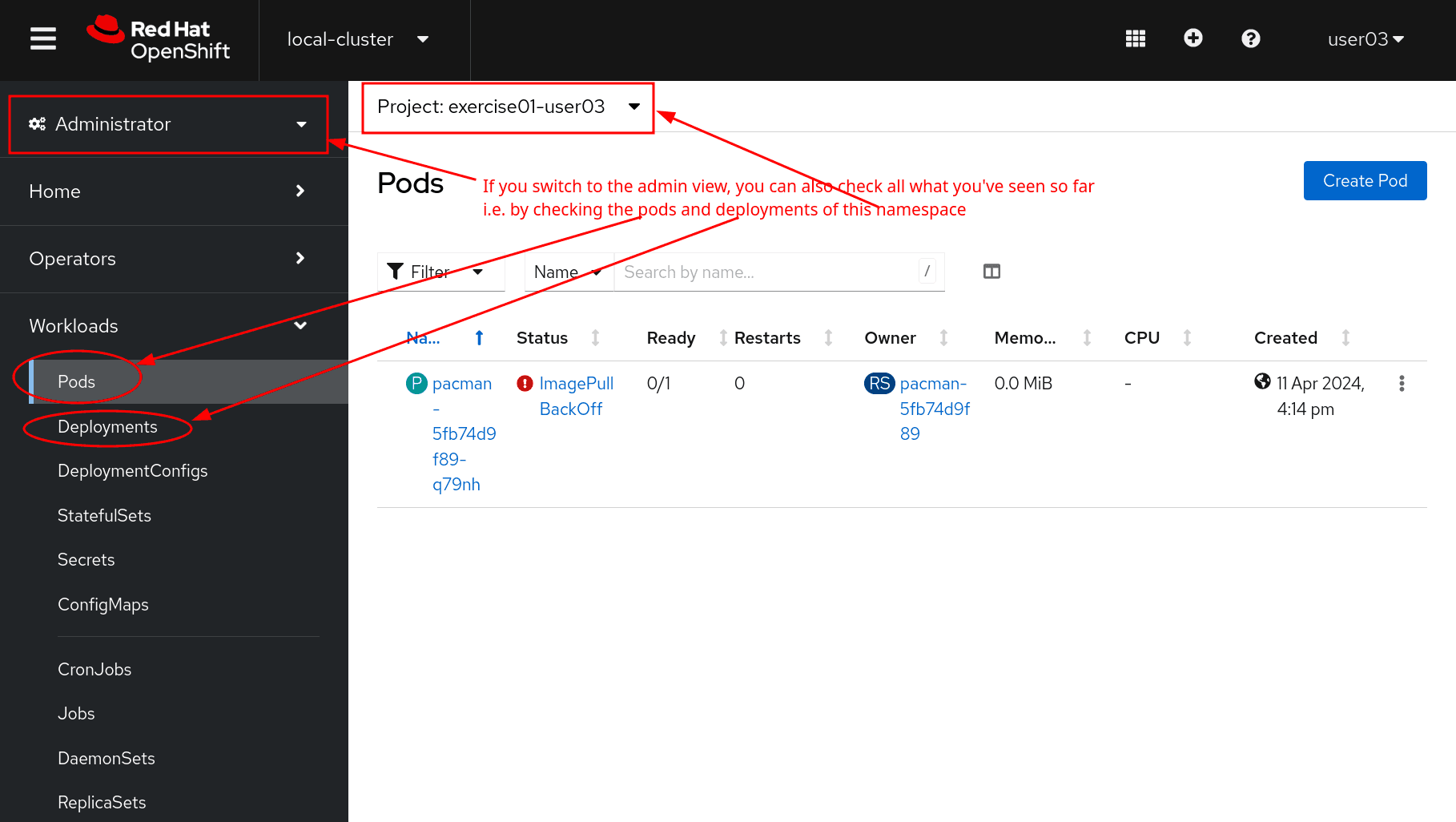

Administrator perspective

You can also switch to the administrator, and have access to your deployment and / or pod information under the workload menu.

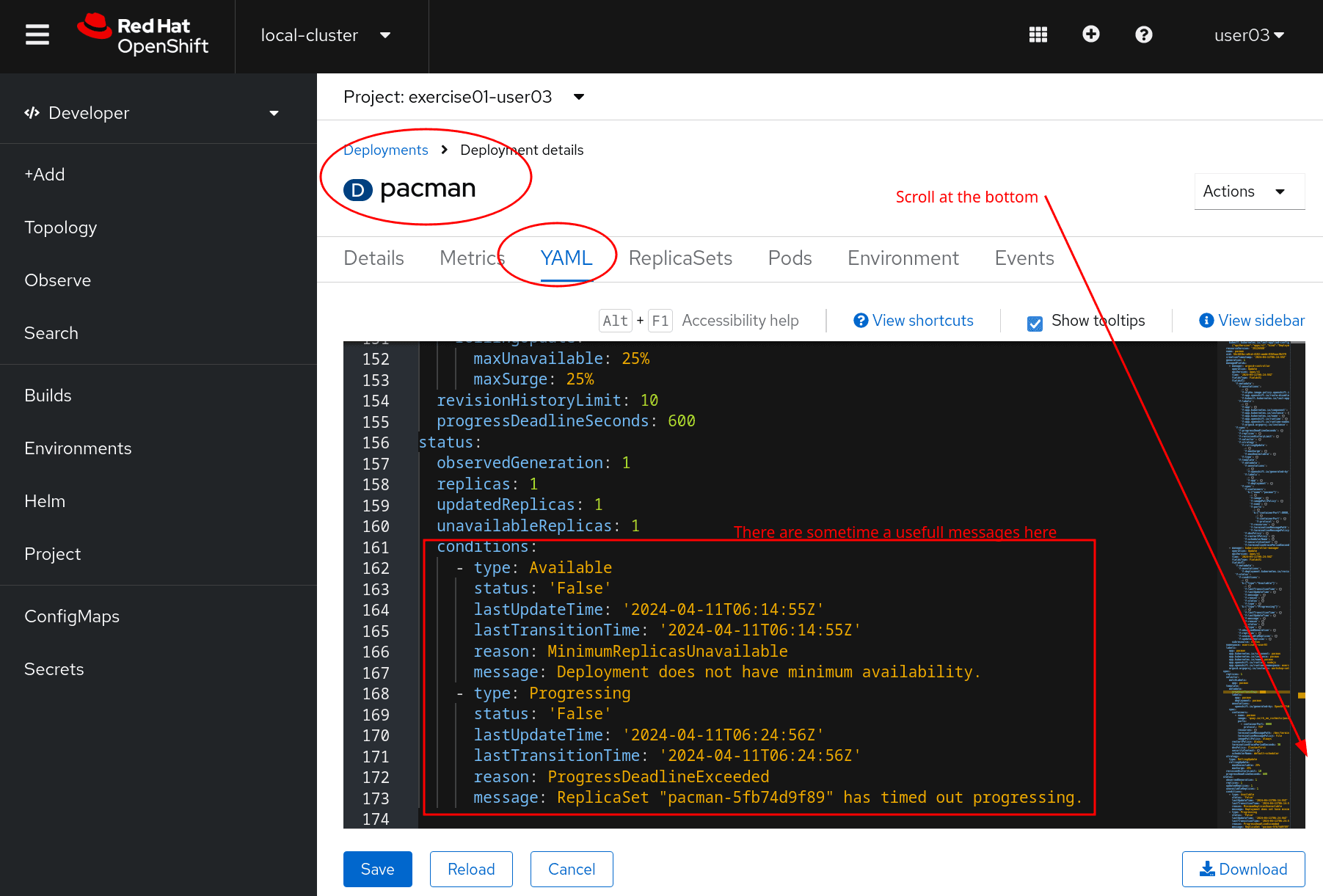

Deployment definition Yaml

Errors may be visible when inspecting the deployment definition Yaml. Have a look!

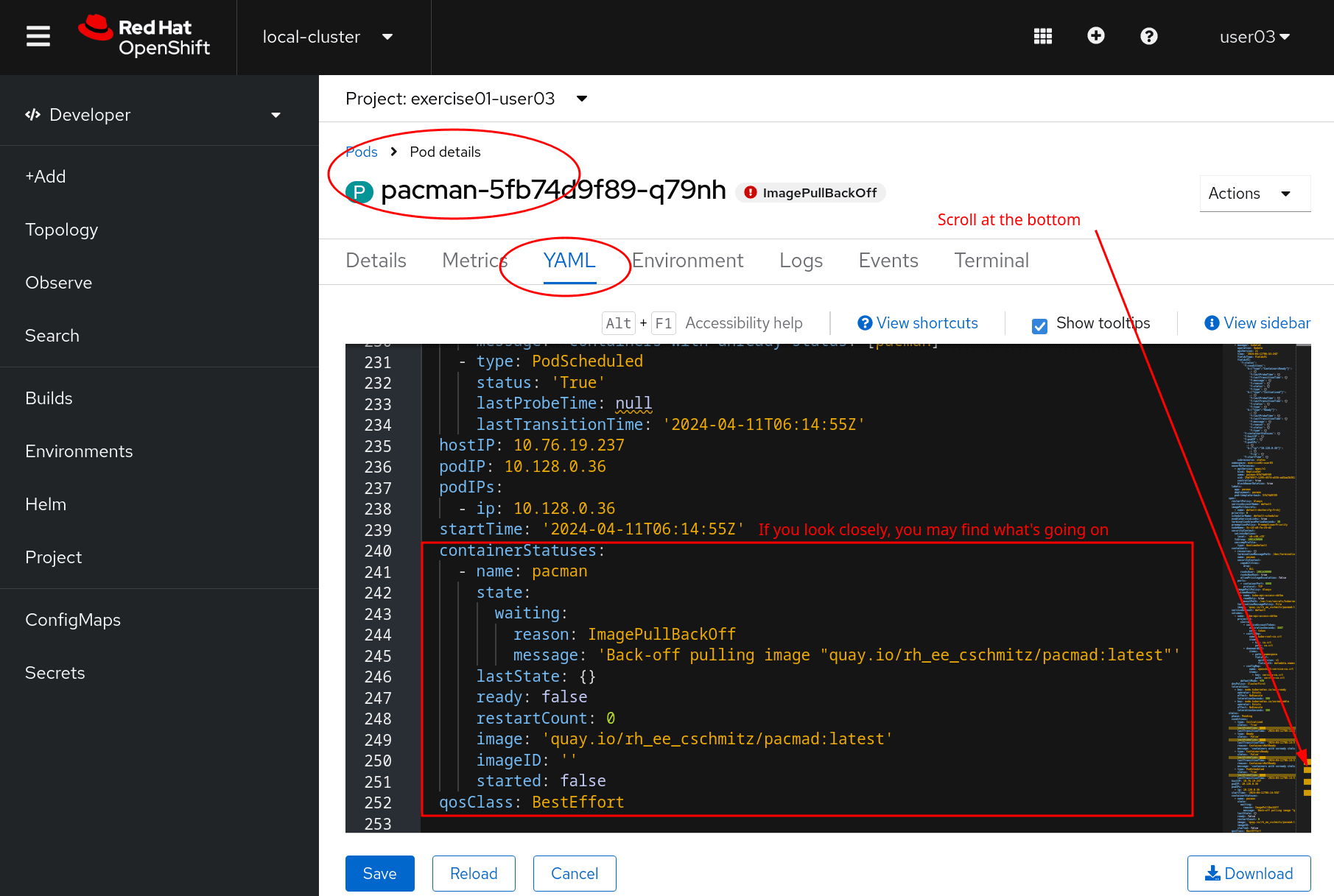

Pod definition Yaml

Similarly, errors may be visible when inspecting the pod definition Yaml. Have a look!

Take away

When a pod doesn't start messages may appear in various place worth checking

• Deployment's Event
• Deployment's Yaml (at the bottom)
• Pod's Event
• Pod's log (at the bottom)
• Pod's Yaml
• other places we will see in this workshop
